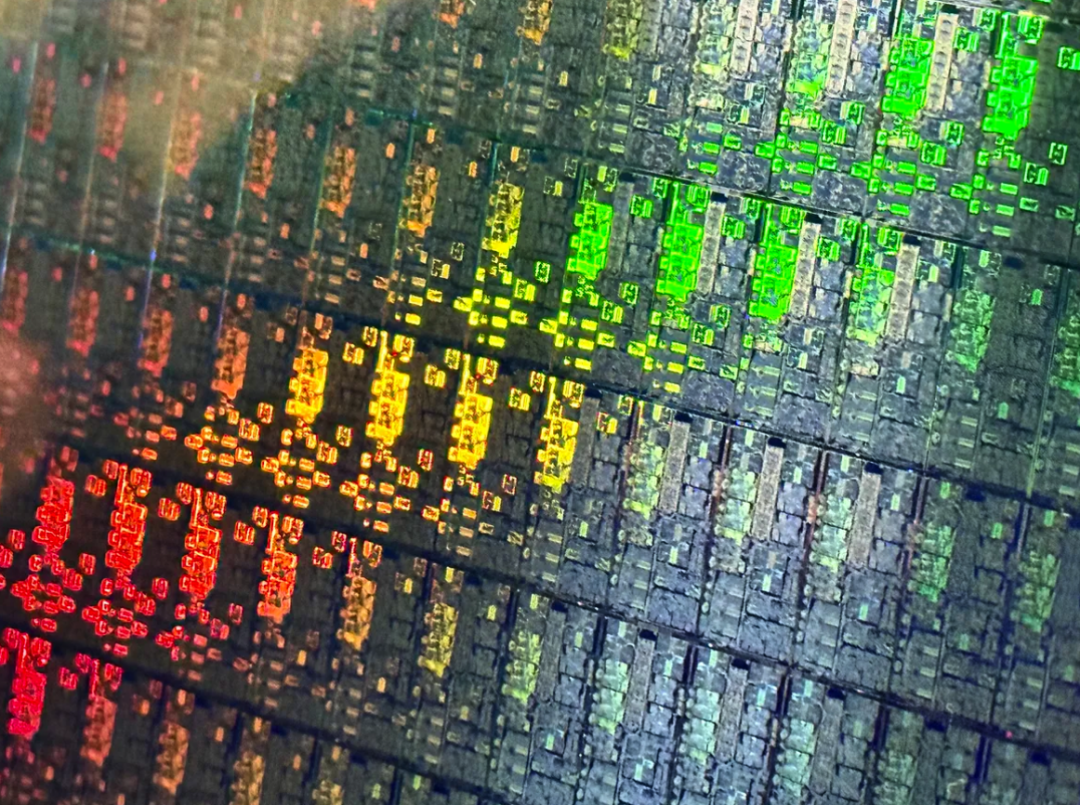

Intel announced on Thursday that its next-generation Core Ultra 3 'Panther Lake' processors have officially entered mass production. This milestone not only signifies Intel's commitment to advancing its 18A process technology but also highlights a pivotal achievement in the company’s efforts to revitalize its internal manufacturing capabilities. With Panther Lake, Intel aims to reaffirm its leadership in cutting-edge process and product technology, showcasing its capabilities to customers, investors, and potential foundry partners.

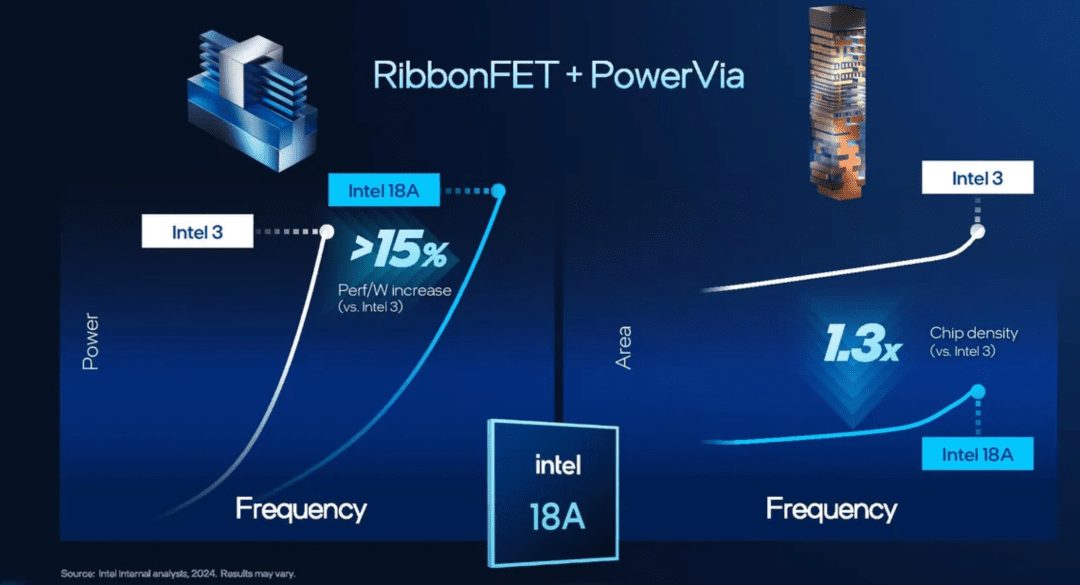

The 18A node stands as Intel’s most strategically significant process yet. Officially recognized as a 2nm process, it is the world’s first 1.8-nanometer technology to reach volume production. It incorporates a combination of RibbonFET wrap-around gate transistors and PowerVia backside power technology, both being simultaneously implemented for the first time at this production stage. RibbonFET enhances transistor density and electrical performance, while PowerVia improves power efficiency and performance by relocating the power supply layer to the wafer's back, thus freeing up front-side space for additional signal interconnects.

Timing-wise, Intel's 18A process commenced volume production weeks ahead of TSMC's N2 node, making it the first company globally to launch 2nm-level production. However, in competitive terms, this progress represents more of a 'tie' than an outright lead. TSMC’s N2 is slated for mass production in Q4 2025, with a multitude of client and data center products scheduled for 2026. The timeline disparity between the two nodes remains minimal.

Technical specifications reveal TSMC’s N2 high-density (HD) standard cell transistor density at approximately 313 MTr/mm², compared to Intel’s 18A at 238 MTr/mm². Ostensibly, TSMC offers higher density; however, Intel’s backside-powered architecture compensates by providing more space for logic wiring and signal interconnections. PowerVia's shorter current paths and reduced voltage drops present advantages, albeit with increased manufacturing complexity and cost. Industry consensus suggests 18A’s production costs exceed those of TSMC's N2, positioning Intel within higher-margin, high-end CPU and data center chip markets instead of price-sensitive sectors.

The Panther Lake platform serves as the first implementation of the 18A process, with shipments targeted by the end of 2025 and into early 2026. This is slightly delayed from initial projections, reflecting a gradual scale-up of the 18A process due to yield consistency, performance uniformity, and package tuning challenges. Intel's Oregon development line has entered early production, with Fab 52 in Arizona ramping up wafer production, and Fab 62 slated to meet rising capacity demands.

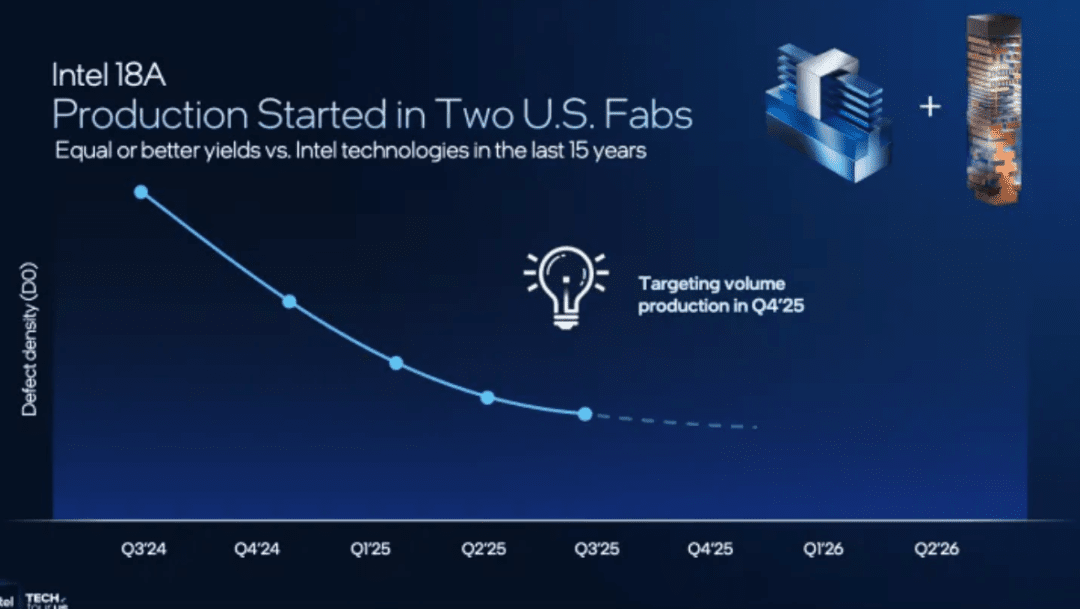

On the subject of yields, Intel has shown a chart indicating a downward trend in defect densities (D0) over the past year but stopped short of disclosing specific figures. The company asserts that Panther Lake’s functional yields are comparable or superior to those of similar nodes over the previous 15 years. Analysts, however, note that smaller die areas (~100-110mm²) inherently lead to higher yields, necessitating further validation with more intricate multi-chip packages.

From a market perspective, the success of the 18A process is crucial for Intel. It is an integral component of the company’s "four years, five nodes" strategy and will help pave the way for the subsequent 14A node. Additionally, the credibility of the Intel Foundry Services (IFS) is at stake, as Intel seeks to attract external clients with its 18A, 18A-P, and future 14A processes. Panther Lake, along with the forthcoming Xeon 6+ 'Clearwater Forest,' represents core offerings that underscore process maturity, with the latter set to launch in H1 2026, boasting up to 288 cores to showcase the high-performance viability of the process.

Strategically, the distinction of 'volume production lead' alone doesn't secure a clear market advantage. TSMC's N2 production follows closely, with companies like Apple, Qualcomm, and AMD having already secured initial capacities. Despite Intel securing the first-mover nod with 18A, its customer roster remains predominantly in-house, and the foundry business hasn't fully commercialized externally. To reestablish manufacturing leadership, Intel must focus not just on node timelines, but on sustainable production capacity, yield management, and client trust.

The official mass production of 18A demonstrates Intel’s recovery from previous manufacturing stagnation and sets the technical groundwork for Panther Lake. Nonetheless, this 'comeback effort' is ongoing, with TSMC retaining superiority in density and cost-efficiency, and Samsung making strides with GAA technology. Intel’s ongoing challenge is to fulfill the 18A production promise by proving its sustained competitiveness in performance, energy efficiency, and volume production. The upcoming year will be pivotal, as Panther Lake’s market performance and 18A’s foundry advancements will serve as crucial metrics in evaluating Intel’s manufacturing revival.
